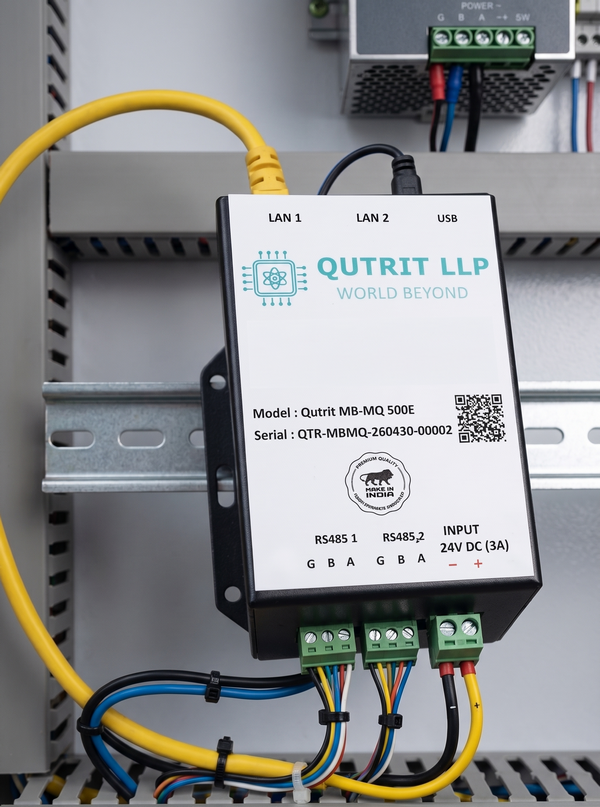

Modbus to SNMP Gateway
The ARM-Based Modbus to SNMP Gateway is a high-performance, rugged industrial bridge. Built on a powerful Debix controller architecture, it allows Network Monitoring Systems (NMS) to seamlessly communicate with industrial Modbus devices. By converting high-density Modbus registers into SNMP OIDs, it enables the integration of up to 10,000 datapoints into your IT infrastructure.
Enterprise IT Monitoring
- Powerful ARM Core: Powered by a Debix controller for superior processing and low-latency protocol conversion.
- Full SNMP v1/v2c/v3: Enterprise-ready support with secure v3 authentication and encryption.
- High Capacity: Robustly manages 5,000 to 10,000 datapoints for large-scale facility monitoring.
- Trap Notifications: Instant SNMP Traps and alerts when critical Modbus thresholds are breached.
- MIB Management: Simplified mapping of industrial Modbus data to SNMP-friendly Object Identifiers.
- Rugged Reliability: Designed for 24/7 operation in demanding industrial environments.
Industrial View
Technical Specifications
| System Architecture | ARM-Based Debix Industrial Controller |
| Datapoint Capacity | 5,000 to 10,000 Points |
| Modbus Interface | Modbus RTU (RS-485) / Modbus TCP |
| SNMP Interface | SNMP v1, v2c, v3 (Full Support) |
| Ethernet Port | 10/100/1000 Mbps RJ45 |
| Alerting | SNMP Traps / Email Alerts |
| Power Input | Standard Industrial 24V DC |
| Mounting | Rugged Industrial Form Factor |
Target Applications
- Data Center Infrastructure: Integrating high-point-count UPS, PDU, and cooling systems into PRTG or SolarWinds.
- Telecom Towers: Monitoring rectifiers, battery health, and environment sensors via SNMP.
- Industrial Smart Buildings: Consolidating Modbus energy meter arrays into an IT-centric network management framework.
