Modbus to IEC 61850 Substation Gateway
This Rugged Industrial Gateway is a high-performance communication system specifically engineered for power automation. Built on a custom x86 embedded architecture, it bridges the gap between traditional Modbus-enabled RTUs, IEDs, or power meters and modern substation automation systems based on the IEC 61850 standard, supporting high-density integration of up to 10,000 datapoints.
Enterprise Substation Features
- High-Capacity Integration: Scalable support for 5,000 to 10,000 datapoints for large-scale bay monitoring.
- MMS Support: Full Manufacturing Message Specification support for vertical integration with Substation SCADA.
- GOOSE Messaging: High-speed peer-to-peer horizontal communication for interlocking and protection signals.
- SCL Toolset: Robust handling of Substation Configuration Language (SCL) files including SCD, CID, and IID.
- Industrial Grade Hardware: Ruggedized x86-based box PC designed for superior EMI/EMC immunity in high-voltage environments.

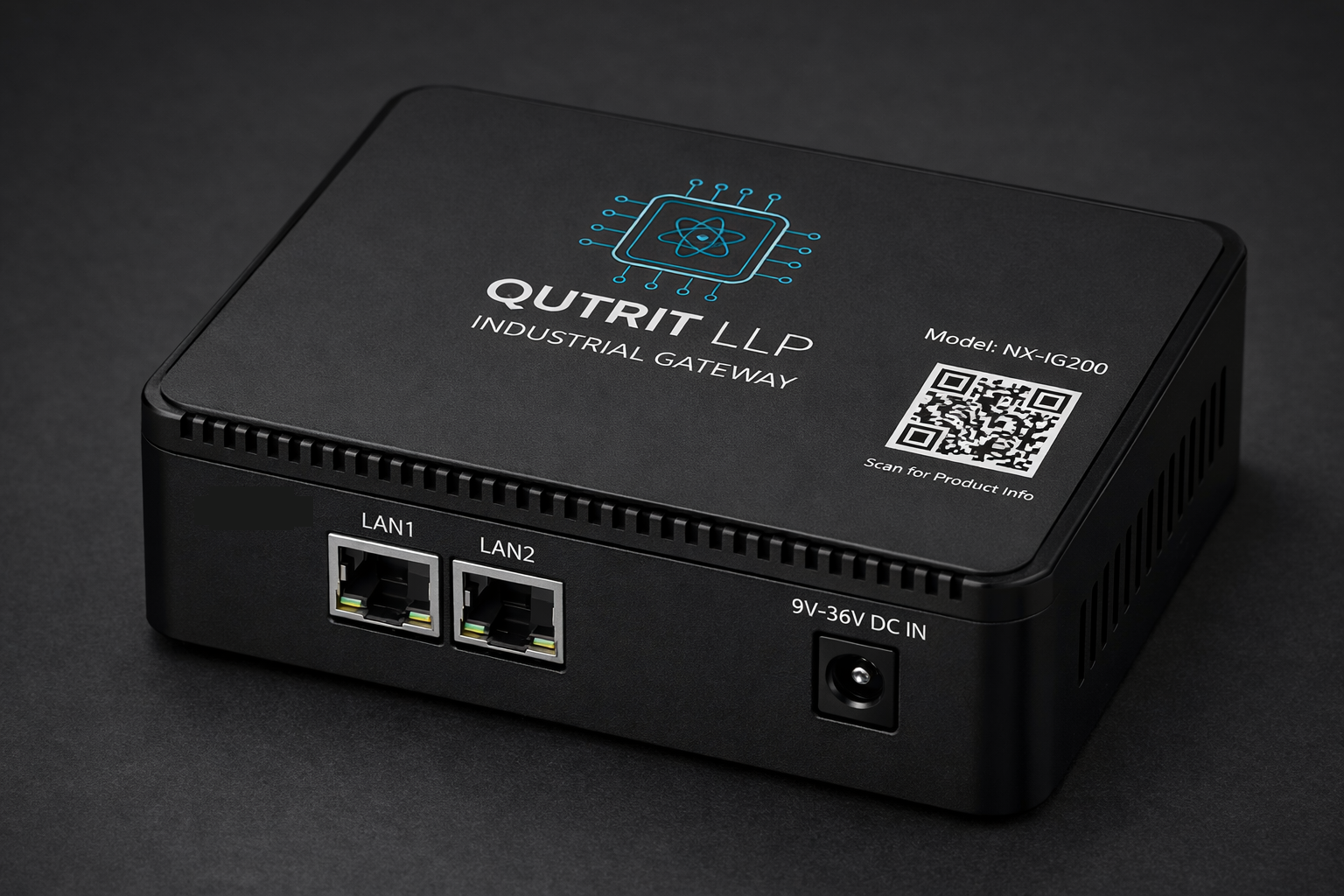

Industrial System View
Technical Specifications
| System Architecture | Custom Ruggedized x86 Embedded System |
| Datapoint Capacity | 5,000 to 10,000 Points |
| Modbus Interface | Modbus RTU/TCP (High-density Client/Server) |
| IEC 61850 Capability | MMS Server, GOOSE Publisher/Subscriber |
| Configuration | SCL File Import/Export (Logical Node Mapping) |
| Networking | Dual 10/100/1000 Mbps RJ45 (Galvanic Isolation) |
| Power Input | Standard Industrial 24V DC / Wide-range AC Options |
| Mounting | Wall Mount / Rack Mountable (Industrial Form Factor) |
Target Applications
- Substation Modernization: Converting legacy Modbus power quality meters into an IEC 61850 Station Bus architecture.
- Renewable Energy Plants: Integrating high-point-count Solar/Wind inverter farms into national grid automation.
- Industrial Power Management: Centralizing data from diverse Modbus RTUs into a modern IEC 61850 compliant SCADA.
